Low Angle Block Plane

  • Low 12 1/2° blade angle for planing end grain and difficult wood
  • Heavy cast-iron body is finely machined for precision work
  • Moveable front piece adjusts throat opening for fine or coarse planing
  • Heavy bronze lever cap and adjusting mechanism assures solid, accurate blade alignment
  • High-carbon steel blade hones to a sharp, long-lasting edge.

The weight and heft of this quality precision plane makes chatter-free planing easy and enjoyable.

6″ overall length, 1 3/8″ blade width

Stock Number

Description Price Purchase
D3831 Low Angle Block Plane $98.99 Add to Cart



Standard Angle Block Plane

  • 25° blade angle for all around, general use
  • Heavy cast-iron body is finely machined for precision work
  • Moveable front piece adjusts throat opening for fine or coarse planing
  • Heavy bronze lever cap and adjusting mechanism assures solid, accurate blade alignment
  • High-carbon steel blade hones to a sharp, long-lasting edge.

The weight and heft of this precision plane makes chatter-free planing easy and enjoyable.

6″ overall length, 1 5/8″ blade width

Stock Number

Description Price Purchase
D3832 Standard Angle Block Plane $98.99 Add to Cart



Kunz Plus Smooth Planes

If you have been looking for a high quality smooth plane at an affordable price, your search is over. This fine plane is loaded with innovations including a pivoting all-in-one “Norris” style blade adjuster, a single screw frog adjuster and a unique blade/cap assembly. The cast body is finely machined with perfectly square sides and all contact surfaces are precisely finished for smooth operation. The extra thick (1/8″) tool steel blade is hardened to Rc60-62 for smooth, chatter-free planning. Precision German engineering and manufacturing at it’s best.

Additional features include a low profile body style and European Cherry handles.

#4 plane overall length is 9 3/4″, blade width is 2″

#5 plane

Stock Number

Description Price Purchase
580-3400 Kunz Plus Smooth Plane #4 $245.00 Add to Cart
580-3500 Kunz Plus Smooth Plane #5 $265.00 Add to Cart



Rider Bench Planes

Finding a well made, affordable bench plane is becoming more and more difficult. If your budget does not include $300 to $500 for one plane we invite you to consider these well made planes. We have been pleasantly surprised by the quality of materials and workmanship found in these solid tools. The heavy castings are accurately and neatly machined. The hardwood handles are functional and comfortable to hold.  After a basic tune-up our test plane yielded outstanding results producing smooth, crisp surfaces with curly, thin shavings.

Stock Number Description Price Purchase
895-1300

#3 Smooth Plane   L 9 1/4″, 1 3/4″ wide blade

$65.00 Add to Cart

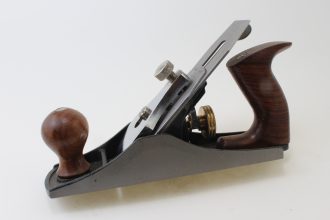

895-1400  #4 Smooth Plane  L 9 3/4″, 2″ wide blade $65.00 Add to Cart

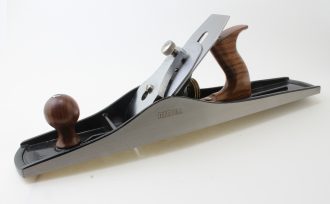

895-1500  #5 Jack Plane  L 14″ 2″ wide blade $85.00 Add to Cart

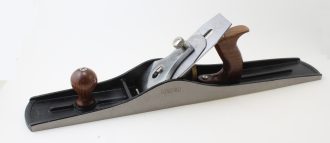

895-1600 #6 Fore Plane  L 18″, 2″ wide blade $110.00 Add to Cart
Block Plane

Block planes are handy for trim work, end grain planing, fine surfacing of difficult woods, and much more. The compact size of these planes makes them perfect for one handed work where a full size tool would be bulky and awkward.  Accurately machined from fine cast iron with brass adjusting knobs. The significant heft and thick blade make this plane a pleasure to use. Rider brand, made in India.

Low angle (13 1/2°) for end grain work

Blades require honing before use.

6 1/4″ overall length, low angle blade is 1 3/8″ wide.

Stock Number Description Price Purchase
660-4500 60 1/2 Low Angle Block Plane $58.00 Add to Cart



Router Plane

This solid cast iron Router Plane is the better way to adjust the depths of dados and hinge mortises. The stout blade measure 1/4″ square and is adjustable for precision depth of cut settings. The body measures 2-3/16″ x 4-1/8″.

Stock Number
Description
Price
Purchase
D3830
Router Plane
$45.00



Anant Rabbet.jpg (8350 bytes) Bullnose Rabbet Plane

Rabbet planes are the best tools for trimming shoulders, rabbets, grooves and tenons.  Because the blade extends out to the sides of the plane, access to right angle corners is possible.  The style of this rabbet plane is known as “bullnose” which describes the short extension in front of the blade.  This short nose piece makes it possible to work close in corners and hard-to-reach areas.   The front can be removed allowing this tool to also be used as a chisel plane.

This solid, hefty plane is made in India and represents an excellent value for woodworkers of all levels. Overall length 5 1/2″,  1 1/8″ wide blade.

As with all but the most expensive planes, this tool requires some tune up to achieve it’s maximum potential.  Your effort will be rewarded with excellent results!  Instructions included.

Description

Stock Number Price Purchase

    Bullnose Rabbet Plane

895-4400 $69.95 Add to Cart



Ibex Violin Makers Planes (Curved Sole)

Ibex Violin Makers Planes are the finest available. Designed by Irving Sloane they are cast in silicon bronze and feature a curved bottom design for easy shaping of concave surfaces. The large thumbscrew allows quick and secure adjustment of the chrome vanadium steel blade.

Bottom curvature is both front to back and side to side.

Description Stock Number Price Purchase
 8mm blade x 25mm length Ibex Plane 50501 $66.00 Add to Cart
8mm Standard Replacement Blade 50506-8 $22.00 Add to Cart
8mm Toothed Replacement Blade 50507-8 $23.00 Add to Cart
 10mm blade x 30mm length Ibex Plane 50502 $68.00 Add to Cart
10mm Standard Replacement Blade 50506-10 $22.00 Add to Cart
10mm Toothed Replacement Blade 50507-10 $23.00 Add to Cart
 12mm blade x 36mm length Ibex Plane 50503 $70.00 Add to Cart
12mm Standard Replacement Blade 50506-12 $22.00 Add to Cart
12mm Toothed Replacement Blade 50507-12 $23.00 Add to Cart
 18mm blade x 47mm length Ibex Plane 50504 $76.00 Add to Cart
18mm Standard Replacement Blade 50506-18 $22.00 Add to Cart
18mm Toothed Replacement Blade 50507-18 $23.00 Add to Cart



  Ibex Precision Plane (Flat Sole)

60mm (2 3/8″) length with 22.5mm (7/8″) blade width. Built to the same specifications as the violin planes but with a flat sole and parallel sides. Perfect for instrument making and all woodworking where a small, precision plane is needed.

Stock Number

Description

Price Purchase
50505 Ibex Precision Plane $85.00 Add to Cart
50506-22 22.5mm Replacement Blade $24.00 Add to Cart
50509-22 22.5mm Toothed Replacement Blade $24.00 Add to Cart



Pocket Planes

These German made planes are just the tool for small, detailed work. The body is 3 3/8″ long and the blade width is 15/16″. Flat bottom planes are available with or without a raised palm handle.

Kunz Planes.jpg (51657 bytes)

Description

Stock Number Price Purchase
Pocket Plane 580-2300 $24.65 Add to Cart
Pocket Plane with Raised Handle 580-2200 $25.50 Add to Cart
Replacement Blade 580-2301 $4.75 Add to Cart
